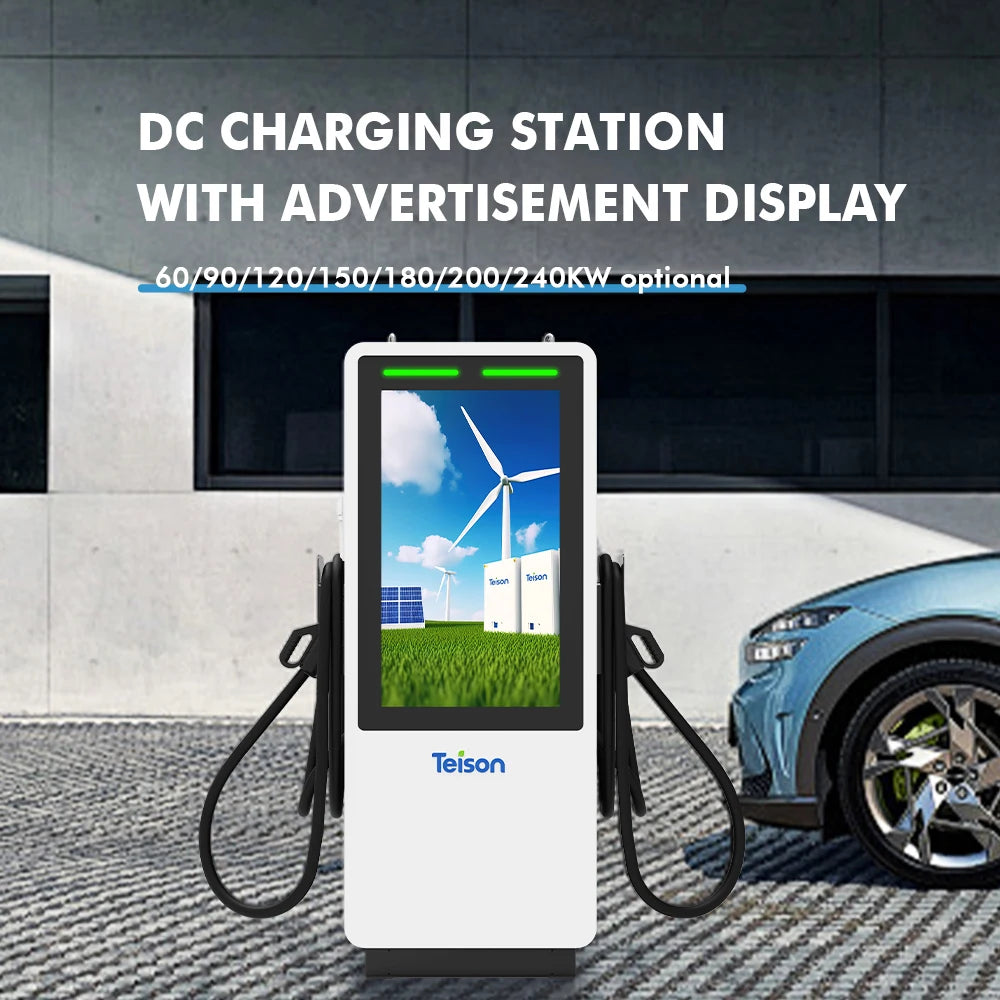

180kW DC Electric Car Public EV Charging Station - Commercial Charger with Advertising Screen Display and OCPP Compatibility

Introducing the TS-EDC180AA/AC43, a high-performance DC Fast EV Charging Station designed for commercial use. This cutting-edge charging solution is engineered to deliver rapid charging capabilities, making it ideal for public charging stations and high-demand environments.

Key Specifications:

Electrical Properties:

• Model: TS-EDC180AA / TS-EDC180AA/AC43
• AC Input Rating: 400V (±15%) 3-phase
• Input Connection: 3P+N+PE
• Rated Input Current: 3φ 100A
• Frequency: 50/60Hz
• Power Factor: ≥0.99
• Efficiency: ≥95%

DC Output:

• Output Voltage Range: 200V-1000V
• Max Output Current: 500A (System)
• Max Output Power: 180kW
• Voltage Accuracy: ≤±0.5%
• Current Accuracy: ≤±1%

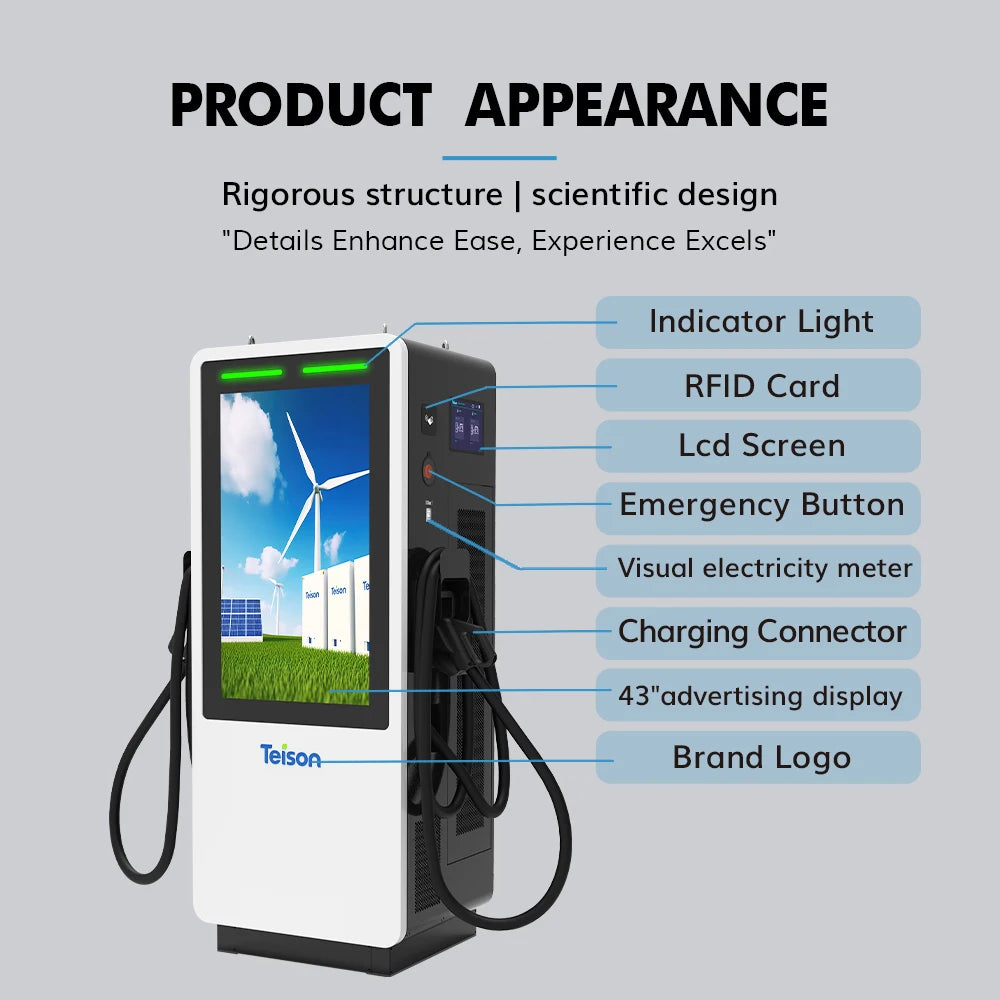

User Interface & Control:

• Display: 10.1" touch screen for user interaction
• Advertising Screen: 43” non-touch screen for advertisements
• Screen Material: High-quality LCD

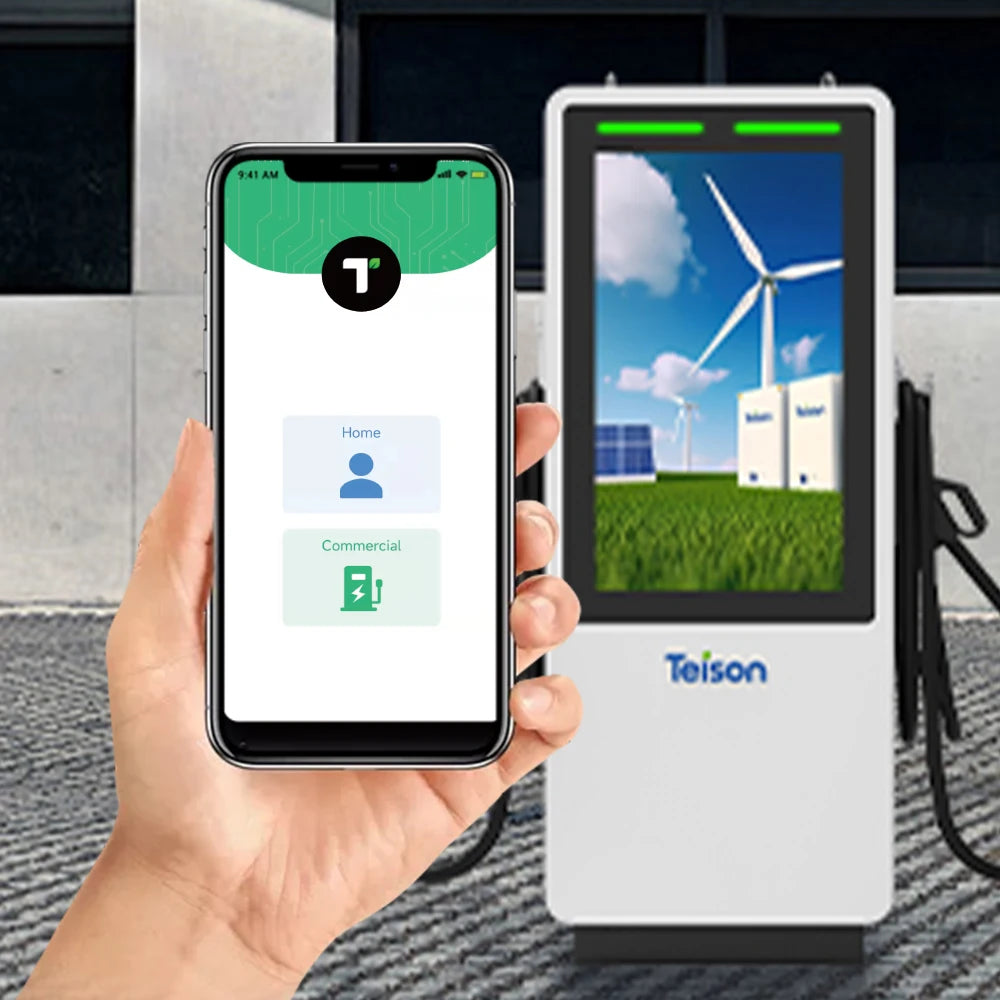

• User Authentication: Supports RFID, OCPP, QR code, and password application
• Language Support: English and additional languages available upon request

Communication:

• External Communication: Ethernet, Wi-Fi, 3G/4G connectivity
• Internal Communication: CAN, RS485, RS232 protocols

Environmental Specifications:

• Operating Temperature: -30°C to +50°C
• Humidity: <95% relative humidity, non-condensing
• Altitude: Suitable for altitudes up to 2000m (6000 feet)

Mechanical Features:

• Ingress Protection: IP55 rated for dust and water resistance
• Enclosure Protection: IK10 rated for impact resistance
• Cooling System: Air forced cooling for optimal performance
• Installation Method: Floor-standing design for easy installation

Safety & Protection:

• Comprehensive Protection: Overcurrent, undervoltage, overvoltage, residual current, surge protection, short circuit, over temperature, and ground fault protection.

Certifications:

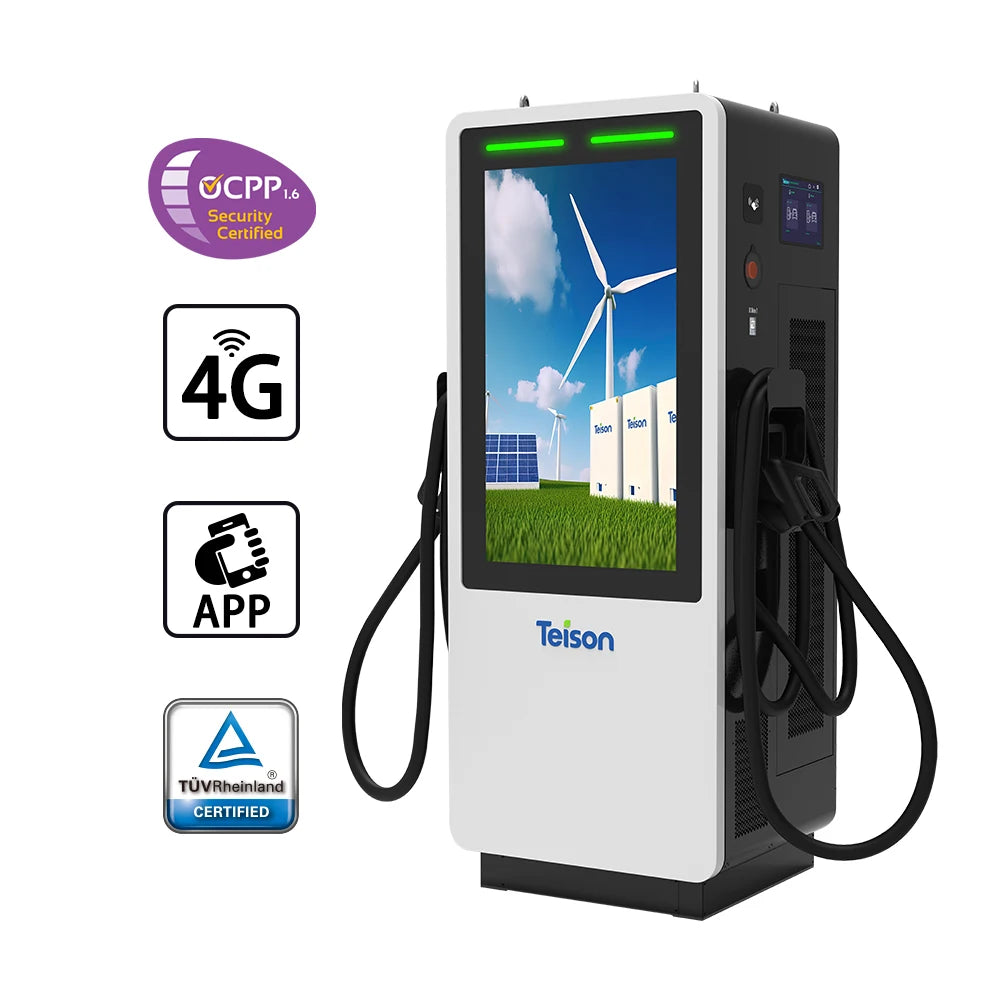

• Compliance: CE and CB certified by TUV Rheinland
• Standards: Complies with EN IEC 61851-1:2019; EN 61851-23:2014; EN 61851-24:2014; EN IEC 61851-21-2:2021

The TS-EDC180AA is your go-to solution for fast, efficient, and reliable electric vehicle charging. Perfect for commercial applications, this charging station combines advanced technology with user-friendly features, ensuring a seamless experience for both operators and users. Upgrade your electric vehicle charging infrastructure today with the TS-EDC180AA!
